Howto: Map/Tip clamp install pictures - SRT Forums

Unoid · 04-21-2006, 04:34 PM

Since everyone is lazy and didn't want to show me any pictures I decided to install it just by the directions and everything went fine.

Heres the pictures.
Map Sensor

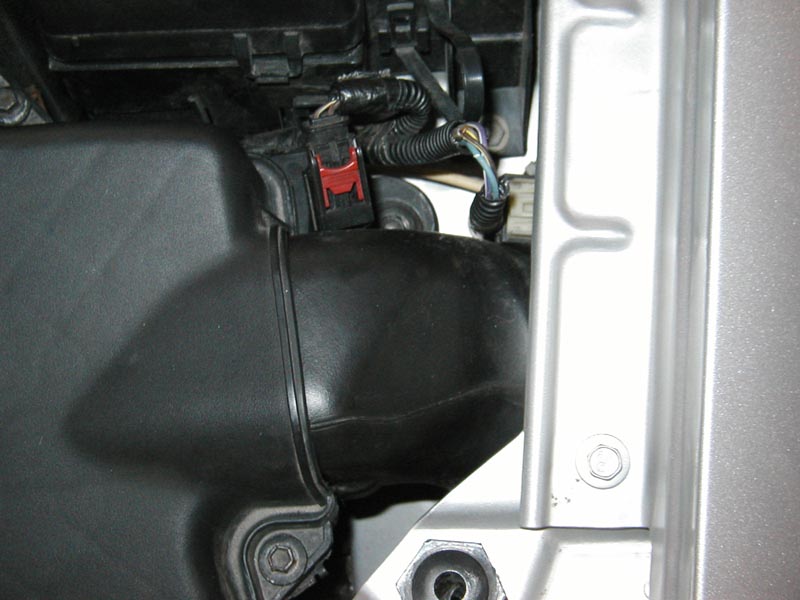

Tip Sensor

Clamp after I sleeved and heatshrink tubed.

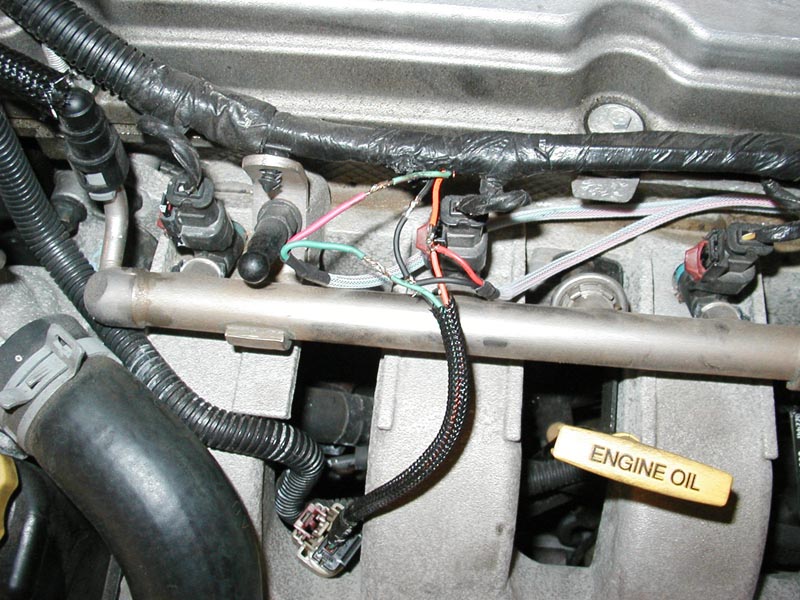

Wires soldered correctly on MAP

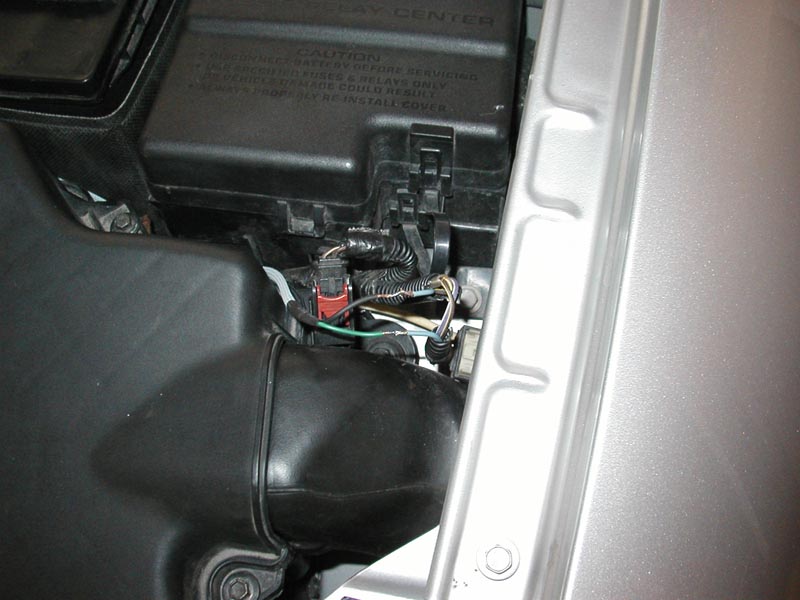

Wires soldered correctly on TIP

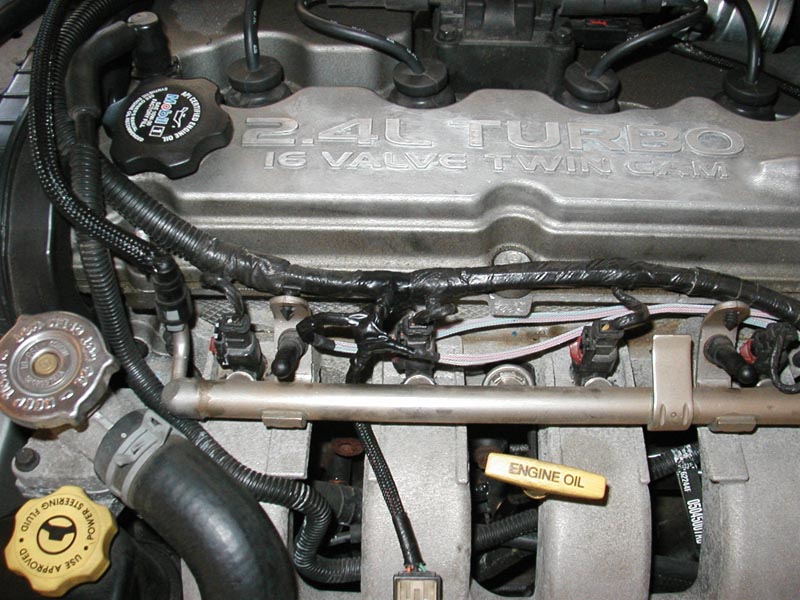

Map all taped up.

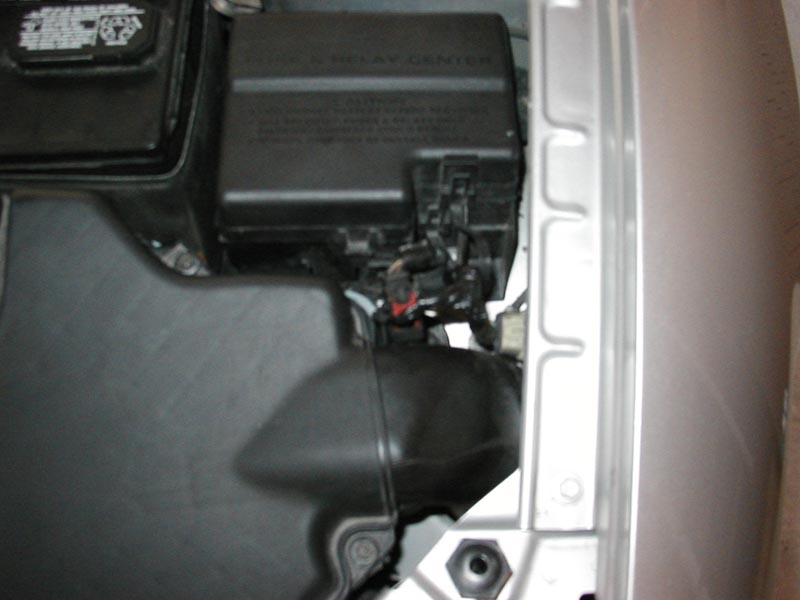

Tip all taped up.

Gibby · 04-21-2006, 08:07 PM

Looks good, this is what I got to do tomarrow.
Unoid, you going to the Indiana srt o.c. dyno meet next week

Unoid · 04-21-2006, 11:26 PM

link me info. I need to dyno to tune my boost/clamp in to 11.5A/F
or email me: unoid@unoid.net

Kwonrae · 04-22-2006, 06:38 AM

you too? I also will tackle this task tomorrow morning, i just wish i would have ordered a wideband a week ago.

Gibby · 04-22-2006, 07:05 AM

Quote: Originally Posted by Unoid

link me info. I need to dyno to tune my boost/clamp in to 11.5A/F
or email me: unoid@unoid.net

Hears the link http://www.indianasrt.com/index.php?...&postorder=asc

looks like the spots are filled, but if you ask you might beable to find someone to sell them their spot, or you might beable to bump boostlee's brother since he's not an srt vehicle...

panama_king · 04-22-2006, 07:43 PM

sticky please

-Iron Monkey

ptperformance · 04-22-2006, 10:08 PM

Quote: Originally Posted by panama_king

sticky please

-Iron Monkey

I would if I knew every car was the same. I have had 2 people that tapped into the blue wire on the TIP and is was not the right wire. I have been reluctant to do a sticky on it due to the wires being wrong on some cars. I will get a sticky up of the HOW TO for the map clamp but I still need everyone to check the votage on the wires before the install.

Unoid · 04-22-2006, 10:30 PM

pfft, I never checked the blue on the TIP sensor... But the car is running fine so maybe I lucked out? whats the voltage with the ignition on suppose to be on the blue sensor wire for th TIP? I'll go check.

ptperformance · 04-22-2006, 10:34 PM

Quote: Originally Posted by Unoid

pfft, I never checked the blue on the TIP sensor... But the car is running fine so maybe I lucked out? whats the voltage with the ignition on suppose to be on the blue sensor wire for th TIP? I'll go check.

Key on engine off it should be 2.1 to 2.4 volts. That is why I put some wording in the new directions for the install. I even ran across an 03 that didnt have a orange wire going to the MAP sensor for the 5 vlt refference. There seems to be some changes that have really screwed with the car or the harnesses didnt have good quality controll.

Unoid · 04-22-2006, 11:36 PM

Alright I'll check tomorrow, I need to use high temp electrical tape or covering tape anyways. my reg electrical tape is getting too hot and unsticking.

Unoid · 04-25-2006, 06:41 PM

The blue wire was the correct one 2.32V with ignition on. I thought with the clamps I wasn't suppose to be able to throw p0234 overboost codes?
I did in 4th gear at 19psi... TIP sensor is clamped shouldn't I have 0 overboost codes?

ptperformance · 04-26-2006, 11:39 PM

Quote: Originally Posted by Unoid

The blue wire was the correct one 2.32V with ignition on. I thought with the clamps I wasn't suppose to be able to throw p0234 overboost codes?
I did in 4th gear at 19psi... TIP sensor is clamped shouldn't I have 0 overboost codes?

Yes you should have 0 overboost codes. There is however a PTB code it will throw (similar to an overboost code). And if you dont have the clamp set low enough it will still set overboost codes. Hence the PCM is shooting for 12 and the clamp is set for 16, you get a code.

moreause · 04-27-2006, 07:41 PM

i got P0234 tip overboost performance and P2074 manifold /throtle pressure correlation (ptb problem)

ok i'm still in adjustment phase and it is lots of ptb and spiking
so P2074 seem ok...for P0234...not supposed to exist ..but like you said maybe caused by ptb

ptperformance · 04-29-2006, 12:29 AM

Quote: Originally Posted by moreause

i got P0234 tip overboost performance and P2074 manifold /throtle pressure correlation (ptb problem)

ok i'm still in adjustment phase and it is lots of ptb and spiking
so P2074 seem ok...for P0234...not supposed to exist ..but like you said maybe caused by ptb

If you tapped into the tip and map sensors you will not get the P2074 the correlation can not be off due to the clamp being even at both the sensors. Seems like there might be another problem. The p0234 seems to be a PTB issue and I am working on a fix for that right now.

moreause · 04-29-2006, 07:43 AM

Quote: Originally Posted by ptperformance

Quote: Originally Posted by moreause

i got P0234 tip overboost performance and P2074 manifold /throtle pressure correlation (ptb problem)

ok i'm still in adjustment phase and it is lots of ptb and spiking
so P2074 seem ok...for P0234...not supposed to exist ..but like you said maybe caused by ptb

If you tapped into the tip and map sensors you will not get the P2074 the correlation can not be off due to the clamp being even at both the sensors. Seems like there might be another problem. The p0234 seems to be a PTB issue and I am working on a fix for that right now.

yes it seems it is not a clamp problems...probably more a stage 0 probleme...i never had it before (tip mod and das map clamp...but was stock WG)
i had the codes running up hill slowly...so you end up a 2,3 psi with almost no gaz. And i got the 2 code at the same time again. (now i'm stage 2 WG and EBC)
